6Pcs Screw Extractor sets
USD0.5 -
USD1.5
Specification:
| Product name | Screw Extractor set |
| Brand name | Obestool |
| Place of Origin | Sichuan,China |
| Material | Carbon Steel |
| Extractor Size | 1/8"-1/4"(3-6mm),1/4"-5/16"(6-8mm),5/16"-7/16"(8-11mm),7/16"-9/16"(11-14mm),9/16"-3/4"(14-18mm),3/4"-1"(18-25mm) |

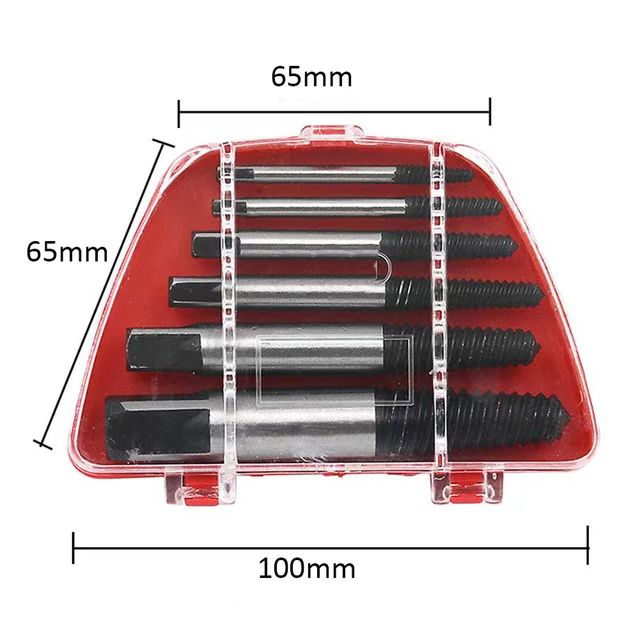

| Package | plastic box & blisters & cartons |
| Customized support | OEM/ODM |
Product Description:

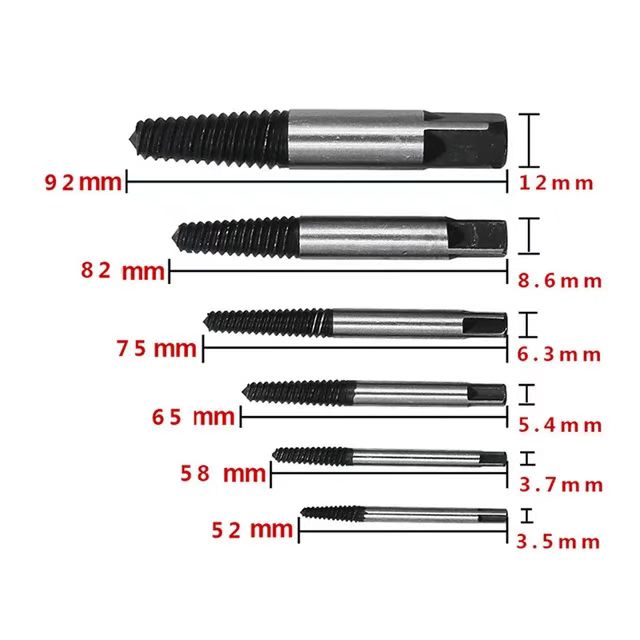

| Specification | Total Length | Thread Length | Shank Diameter | Scope of Application |
| 1# | 52mm | 16mm | 4.0mm | 4-5mm |
| 2# | 58mm | 20mm | 5.0mm | 5-6mm |
| 3# | 65mm | 28mm | 6.5mm | 6-8mm |
| 4# | 75mm | 30mm | 7.5mm | 8-9mm |
| 5# | 82mm | 32mm | 11mm | 10-12mm |
| 6# | 92mm | 38mm | 15mm | 14-16mm |
