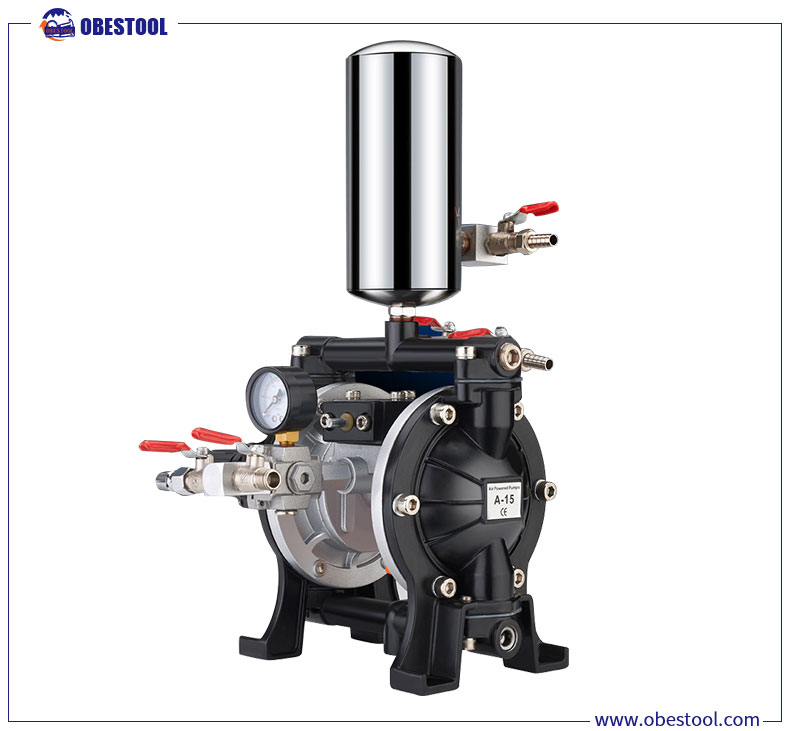

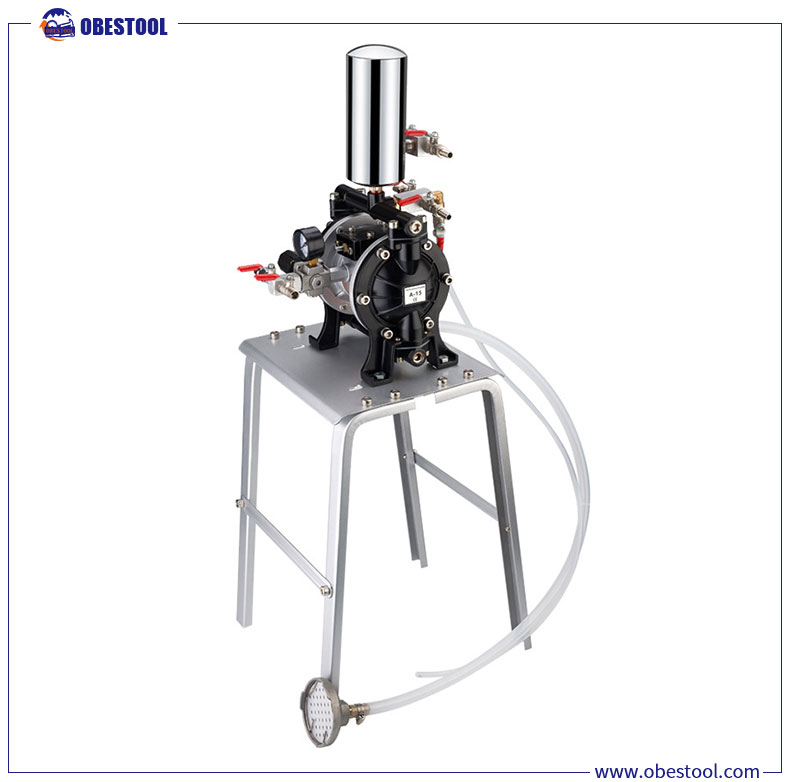

AIR POWER DIAPHRAGM PUMP A-15
USD1.0 -
USD1.0

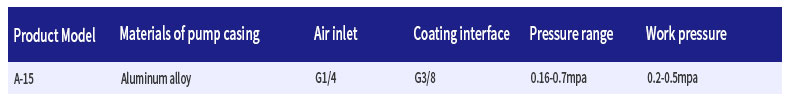

Specification:
| Product name | AIR POWER DIAPHRAGM PUMP A-15 |
| Brand name | Obestool |
| Place of Origin | Sichuan,China |
| Materials of pump casing | Aluminum alloy |
| Air inlet | G1/4 |
| Coating interface | G3/8 |
| Coating exit | G3/8 |
| Pressure range | 0.16-0.7mpa |
| Work pressure | 0.2-0.5mpa |
| length of the absorption material | 0-5m |
| Length of spraying | 0-50m |
| Maximum flow | 15L/min |
| Maximum gas consumption | 4.2m³/h |
| largest particle that can pass through | Ф2mm |
| Pump speed | 80-160 c.p.m |
| Customized support | OEM/ODM/OBM |
