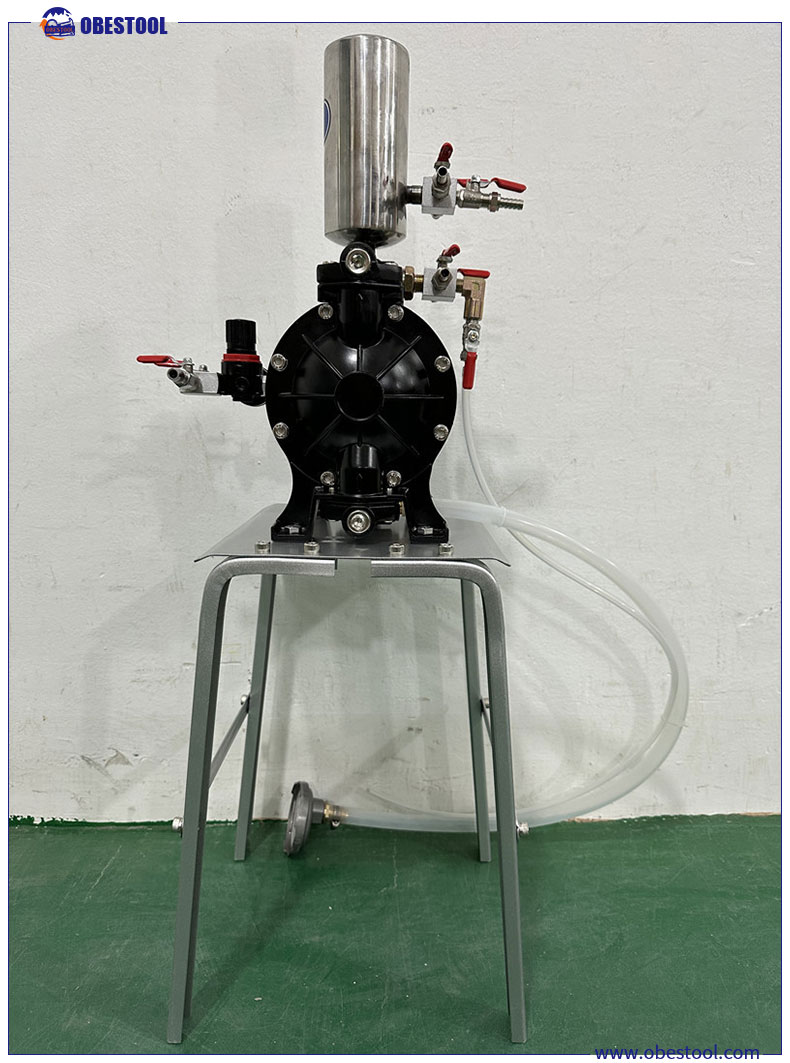

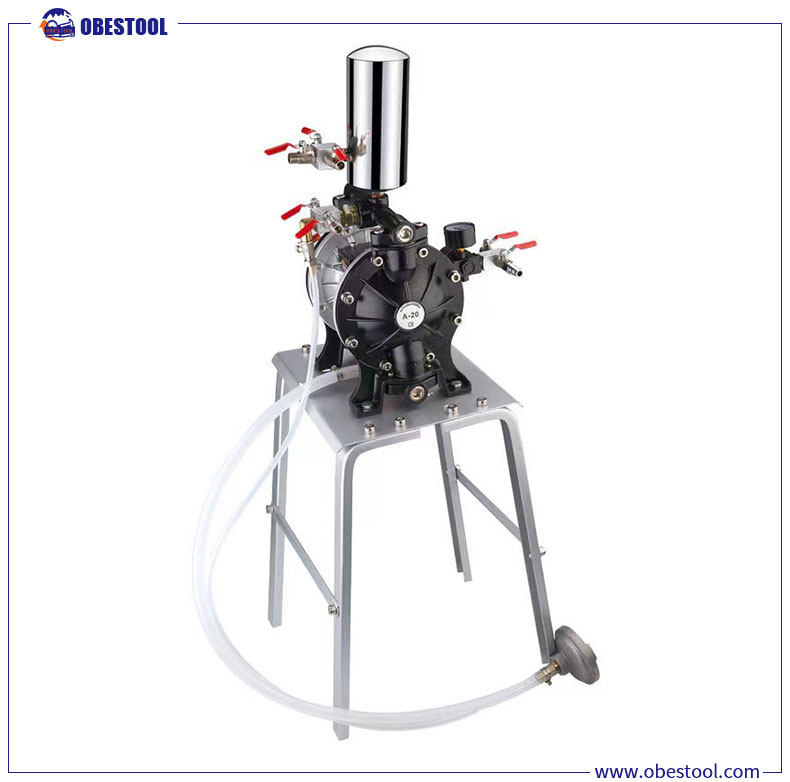

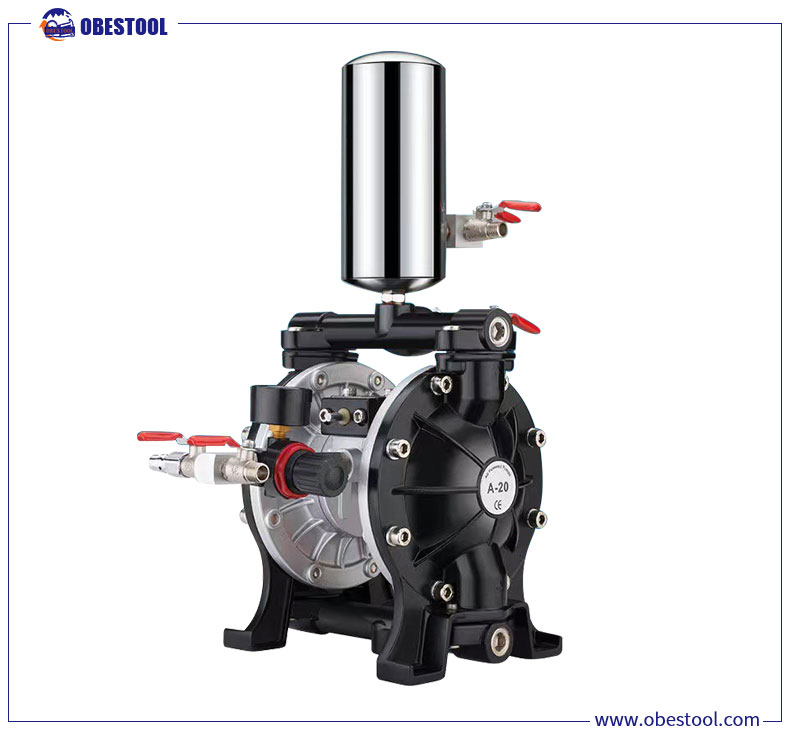

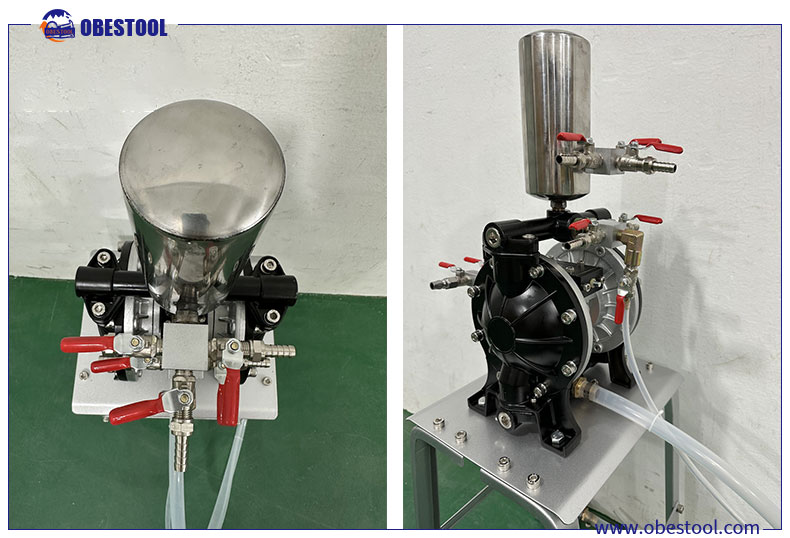

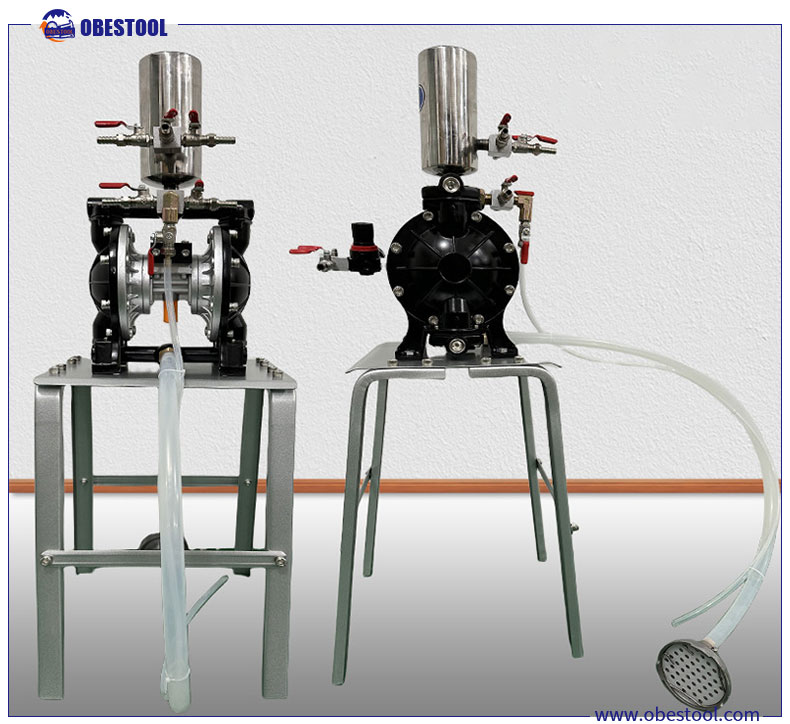

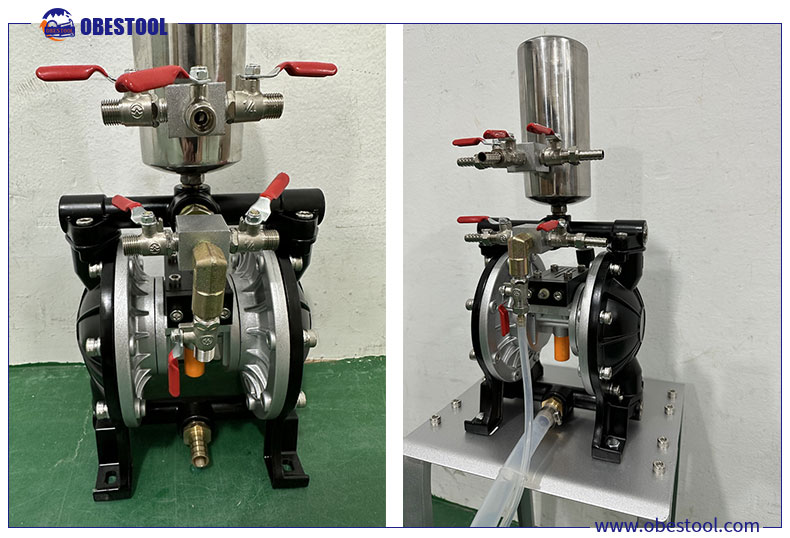

AIR POWER DIAPHRAGM PUMP A-20
USD1.0 -
USD1.0

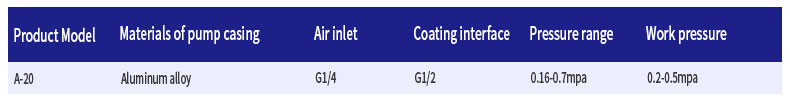

Specification:
| Product name | AIR POWER DIAPHRAGM PUMP A-20 |
| Brand name | Obestool |
| Place of Origin | Sichuan,China |
| Materials of pump casing | Aluminum alloy |
| Air inlet | G1/4 |
| Coating interface | G1/2 |
| Coating exit | G1/2 |
| Pressure range | 0.16-0.7mpa |
| Work pressure | 0.2-0.5mpa |
| length of the absorption material | 0-7m |
| Length of spraying | 0-55m |
| Maximum flow | 30L/min |
| Maximum gas consumption | 7m³/h |
| largest particle that can pass through | Ф3mm |
| Pump speed | 70-150 c.p.m |
| Customized support | OEM/ODM/OBM |
